Nickel Perforated Металлический лист

Подробные спецификации

(1) Материал: Pure Nickel (Nickel200 Nickel201) or other nickel based alloy metal

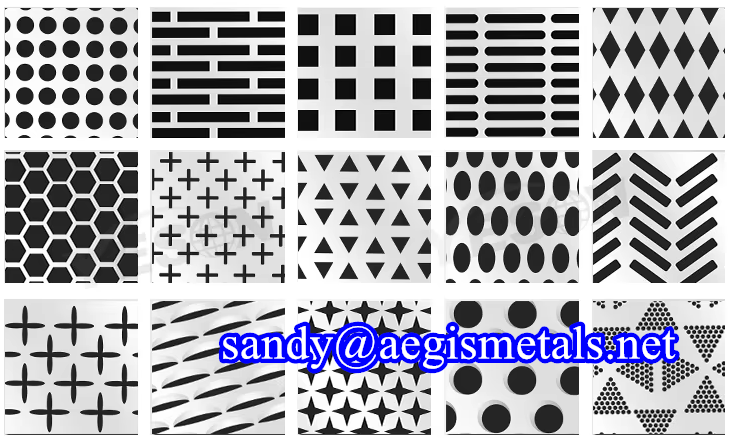

(2) Hole shapes:

–Round Holes: Most common (straight, staggered).

–Square Holes.

–Slot Holes (Round-ended or Straight): Good for directional flow or screening.

–Custom Patterns: Hexagonal, decorative designs, etc.

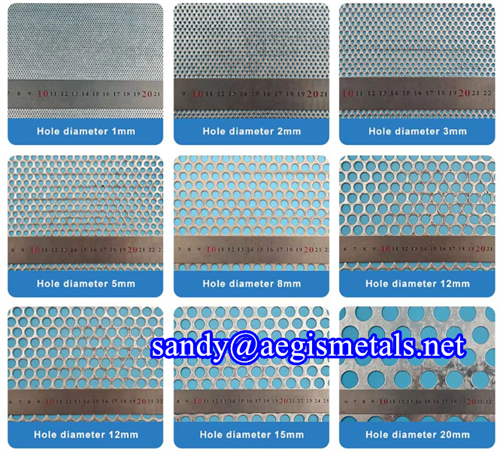

(3) Hole Size (Diameter/Width): Ranges from fractions of a millimeter (mm) to several centimeters, usual 0.1–200mm.

(4) Stagger (Pitch): Distance between hole centers (on-center, OC).

(5)Open Area (%): The percentage of the total sheet area occupied by holes. Crucial for flow, filtration, and visibility.

(6)Размер листа: 1x1m 1x2m 0.5x1m 1.2×2.4m or request cutting size.

(7) Sheet thickness； 0.05mm to 20mm

(8) Hole arrangement: 90°staggered,45°staggered, 60°staggered , 90°straight

More info, please contact us directly via sandy@aegismetals.net

Особенности

Corrosion Resistance: Nickel and its alloys are known for their excellent resistance to corrosion, making the perforated sheets ideal for use in harsh environments and with corrosive materials.
Strength and Durability:Nickel alloys offer a good balance of strength and durability, enabling the sheets to withstand mechanical stress and maintain their structural integrity.
Good Conductivity/Thermal Conductivity: The conductivity is about 14% IACS (International Annealed Copper Standard), used for battery current collectors and fuel cell bipolar plates. Thermal conductivity of 90 W/(m · K), suitable for perforated parts of radiators and heat exchangers.
Customizable structure: Pore size range: 0.1mm (microporous sieve) to 50mm (industrial filter plate).
Opening rate: 15%~80%, adjusted by hole type (round hole, square hole, hexagonal hole) and arrangement (straight or staggered)

Применение

Mining & Mineral Processing: Screens, classifiers, filter plates.
Industrial: Safety grating, walkways, machine guards, silencers, centrifuges, drying racks.
Еда и напитки/Фармацевтическая: Sieves, filters, drying racks, conveyor belts requiring high corrosion resistance and cleanability.
Electronics: EMI/RFI shielding, battery components, speaker grilles.
аэрокосмическая & Marine: Ventilation grilles, acoustic panels, filters, shielding components.
Filtration: Nickel perforated sheets are widely used in filtration systems to separate solids from liquids or gases.The precise hole patterns allow for efficient flow while retaining unwanted particles.
Oil & Gas: Screens, filters, wellhead components, anti-splash baffles resistant to sour gas.Architecture &
